X-keys Desktop (SE+MWII Firmware) Data Reports
General Information
MWII |
SE |
|
VID |
05f3h |
05f3h |
PID |
02A5h or 677 |
0281h or 641 |
Consumer Usage Page |
1 |
1 |
Usage Page |
000Ch or 12 |
000Ch or 12 |
X-keys Desktop Input Report

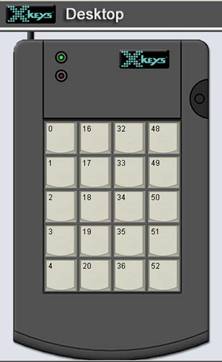

Figure 1: X-keys Desktop key reference.
Endpoint: 1, consumer usage page
MWII Report Length: 32 bytes.
SE Report Length: 12 bytes.
The following types of input reports are available; General Incoming Data and Check Key (MWII only). Const stands for Constant.
1. General Incoming Data. This is received when switches are pressed, unit ID changes, Program Switch changes position.
|
Byte 1 |
Byte 2 |
Byte 3 |
Byte 4 |
Byte 5 |
Byte 6 |
Byte 7 |
Byte 8 |
Byte 9 |
Byte 10 |
Byte 11 |
Byte 12 |
Byte 13-32 |
|
|
MWII |
Const |
Keys 0-4 |
Keys 16-20 |
Keys 32-36 |
Keys 48-52 |
Unit ID (0-255) |
Program Switch Position |
Reserved |
Reserved |
Reserved |
Reserved |
Reserved |
Reserved |
|
MWII |
2 |
D1 |
D2 |
D3 |
D4 |
<data> |
Swpos |
value |
value |
value |
value |
value |
value |
|
SE |
Const |
Keys 0-4 |
Keys 16-20 |
Keys 32-36 |
Keys 48-52 |
Const |
Const |
Const |
Const |
Const |
Unit ID (0-255) |
Program Switch Position |
NA |
|
SE |
0 |
D1 |
D2 |
D3 |
D4 |
0 |
0 |
0 |
0 |
0 |
<data> |
Swpos |
NA |
D1: for all bits 0 for key up, 1 for key down. Bit
1=Key 0, bit 2=Key 1, bit 3=Key 2, bit 4=Key 3, bit 5=Key 4, bits 6-8=0
always.
D2: for all bits 0 for key up, 1 for key down. Bit
1=Key 16, bit 2=Key 17, bit 3=Key 18, bit 4=Key 19, bit 5=Key 20, bits 6-8=0
always.
D3: for all bits 0 for key up, 1 for key down. Bit
1=Key 32, bit 2=Key 33, bit 3=Key 34, bit 4=Key 35, bit 5=Key 36, bits 6-8=0
always.
D4: for all bits 0 for key up, 1 for key down. Bit
1=Key 48, Bit 2=Key 49, bit 3=Key 50, bit 4=Key 51, bit 5=Key 52, bits 6-8=0
always.
Swpos: Bits 1-3=0, bit 4=1, bit 5=0 if program switch is
down or 1 if program switch is up, bits 6-8=0.
X-keys Desktop Output Report
The following types of output reports are available; Set LEDs, Set Unit ID, Set Key (MWII only) and Check Key (MWII only). The Unit ID is a value between 0 and 255 which can be set and read. This number stays permanently in the device independent of computer. It is useful if more than one device of the same PID will be connected to the same computer in order to distinguish the devices uniquely. The Set Key and Check Key reports are for the dongle feature, non PC users please contact P. I. Engineering for further details.
Endpoint: 2, vendor defined usage page
MWII Report Length: 8 bytes.
SE Report Length: 9 bytes.
1. Set LEDs
|
Byte 1 |
Byte 2 |
Byte 3 |
Byte 4 |
Byte 5 |
Byte 6 |
Byte 7 |
Byte 8 |
Byte 9 |
|
|
MWII |
Constant |
LED Command |
Constant |
Constant |
Constant |
Constant |
Constant |
LED Control |
NA |
|
MWII |
2 |
186 |
0 |
0 |
0 |
0 |
0 |
LED |
NA |
|
SE |
Constant |
Constant |
Constant |
Constant |
Constant |
Constant |
Constant |
Constant |
LED Control |
|
SE |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
LED |
LED: Bits 1-6=0, bit 7=1 to turn on green LED or 0 to turn off green LED, bit 8=1 to turn on red LED or 0 to turn off red LED.
2. Set Unit ID*
|
Byte 1 |
Byte 2 |
Byte 3 |
Byte 4 |
Byte 5 |
Byte 6 |
Byte 7 |
Byte 8 |
Byte 9 |
|
|
MWII |
Constant |
Unit ID Command |
Unit ID (0-255) |
Constant |
Constant |
Constant |
Constant |
Constant |
Constant |
|
MWII |
2 |
189 |
value |
0 |
0 |
0 |
0 |
0 |
0 |
|
SE |
Constant |
Unit ID Command |
Unit ID Command |
Constant |
Constant |
Constant |
Constant |
Unit ID (0-255) |
Constant |
|
SE |
0 |
137 |
137 |
0 |
0 |
0 |
0 |
value |
16 |
*For MWII devices make sure the programming switch is set before sending this command in order to permanently write the unit ID to the eeprom.
